INEOS Grenadier - gullwing window aluminium

INEOS Grenadier - gullwing window aluminium

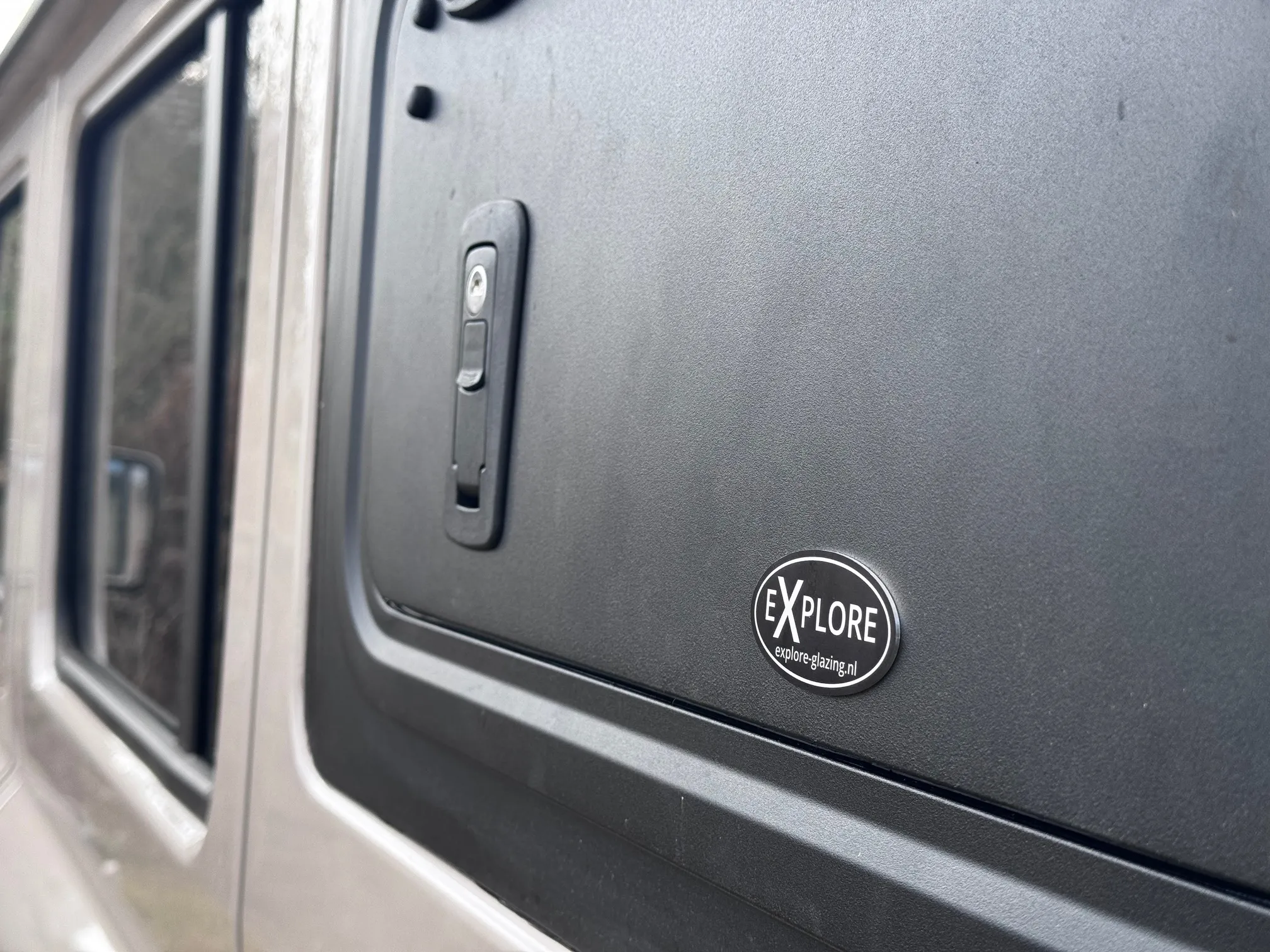

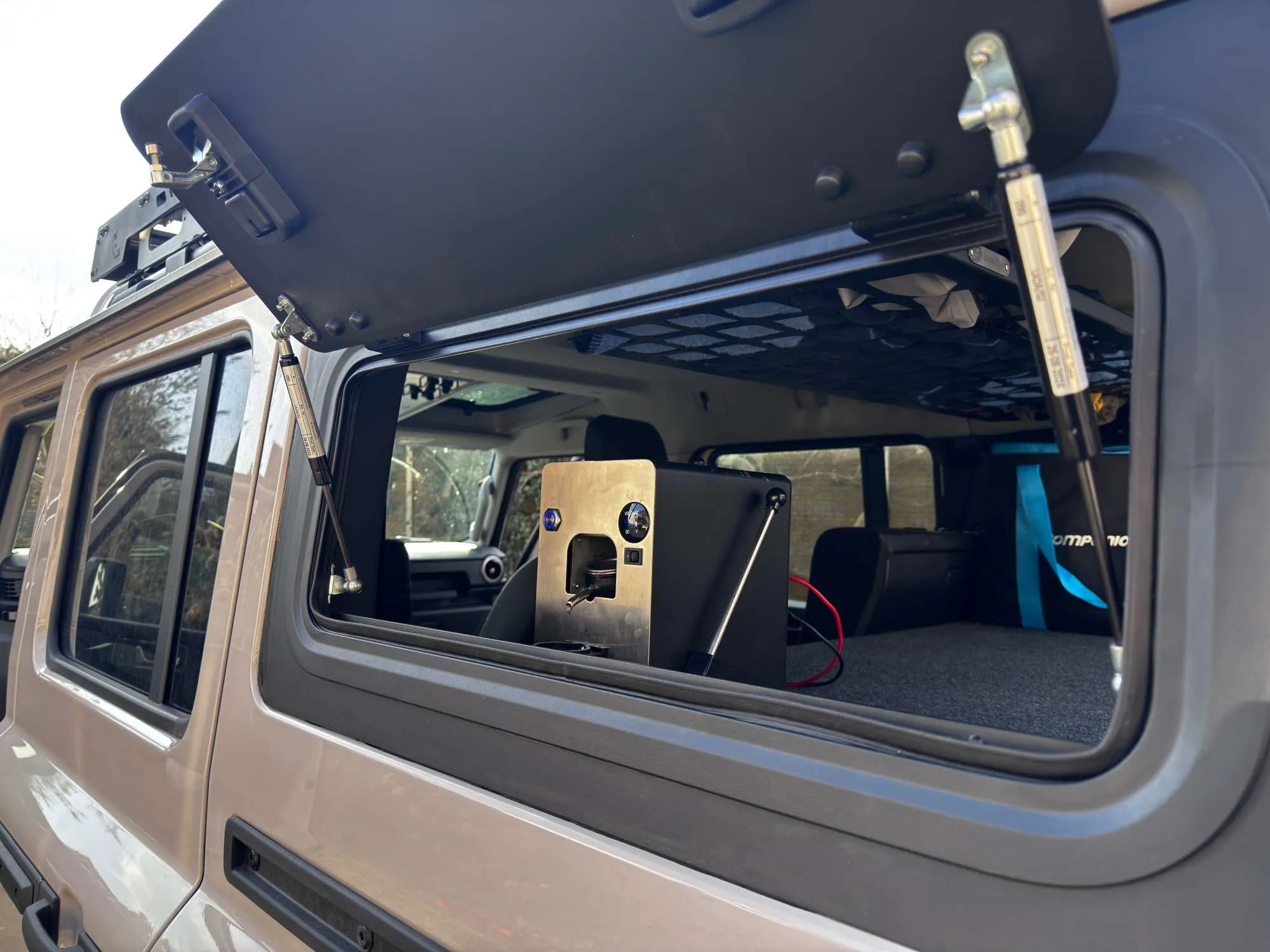

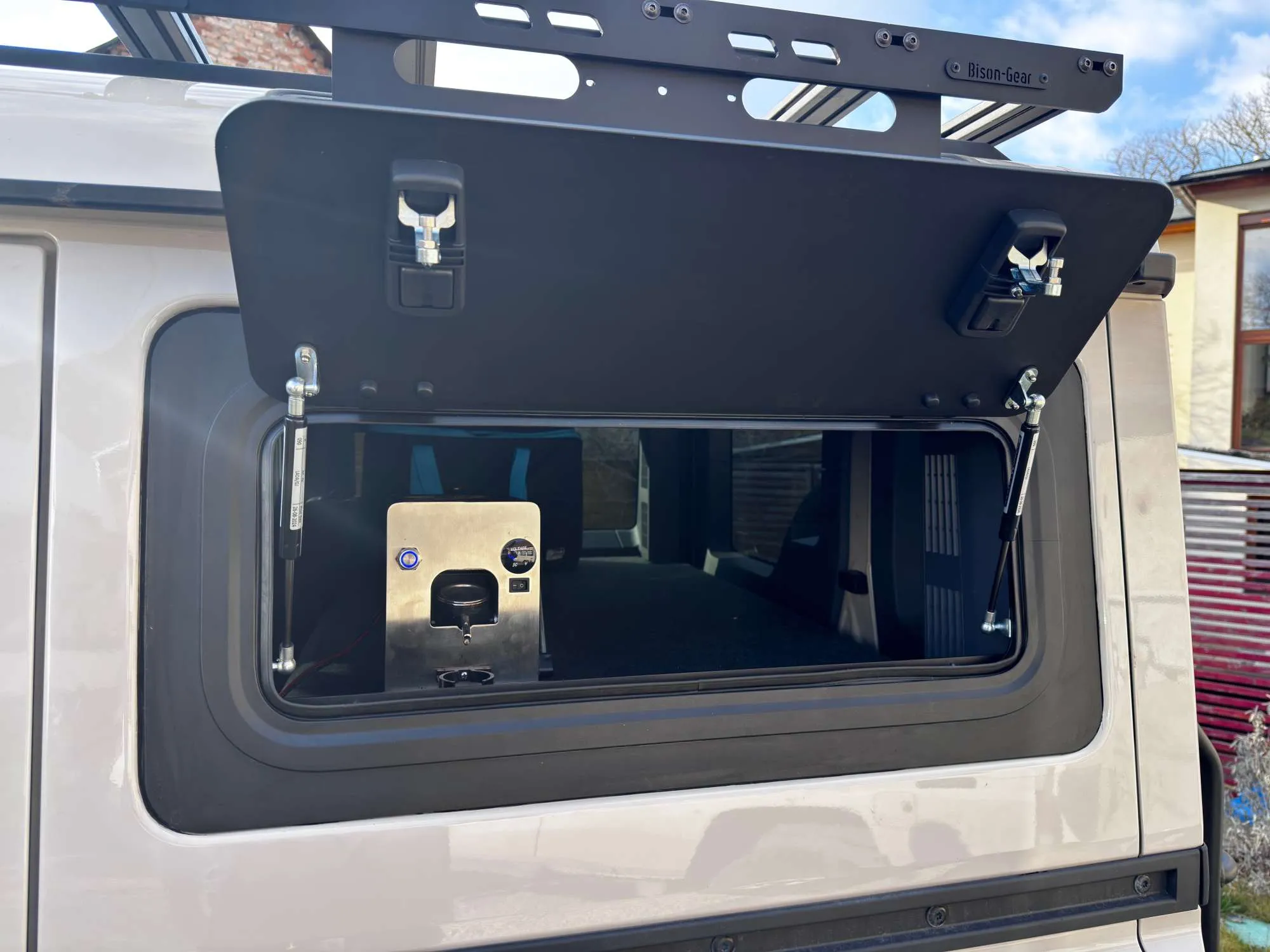

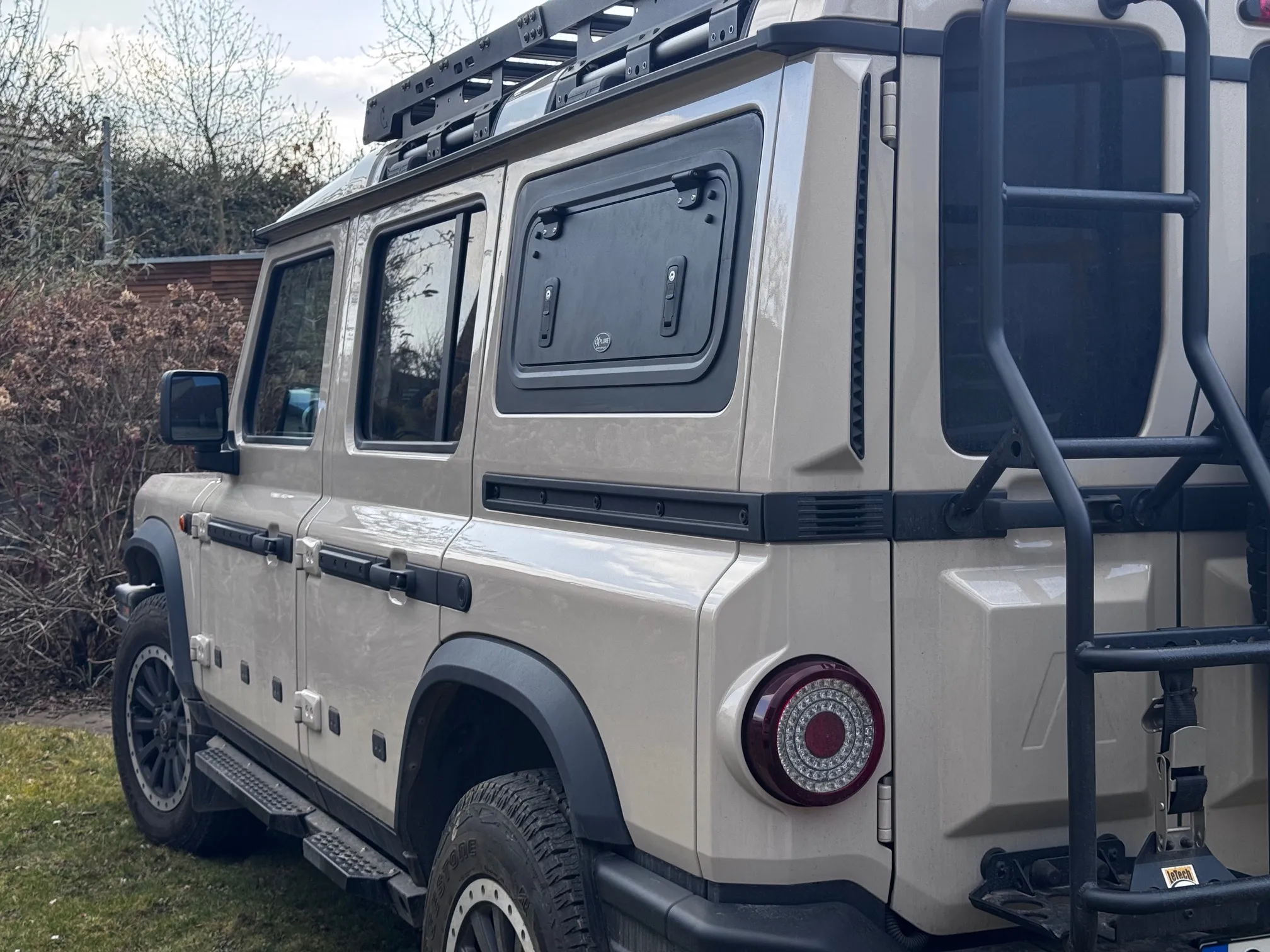

Specifically developed for the INEOS Grenadier, the aluminium gullwing window replaces the factory-fitted bonded glass panel without any cutting or drilling. Installation is fully reversible, and the original window can be reinstalled at any time.

The panel is CNC-cut from aluminium, and the frame is made from in-house developed aluminium extrusion profiles. Both are finished in matte black powder coating (RAL 9005). Two keyed compression locks and dual gas struts ensure secure, rattle-free operation.

Each window is supplied fully assembled and is available for either the left or right side.

Key features

• Lockable gullwing opening for fast side access
• Secure and rattle-free operation
• Reversible installation – no drilling required
• Fully assembled – choose left or right side

Construction

• Aluminium panel, CNC-cut
• Frame made from custom aluminium extrusion profiles
• Matte black powder-coated finish (RAL 9005). The industrial coating is UV-stable and resistant to fading
• 2 × keyed-alike compression latches
• 2 × gas struts

Dimensions

• Dimensions precisely match the original side glass
• No modifications to the bodywork required

Compatible accessories

Explore Overlander Light – fold-down table / guard

Mounts directly to the gullwing frame. Not compatible with the original glass version or other brands.

Installation

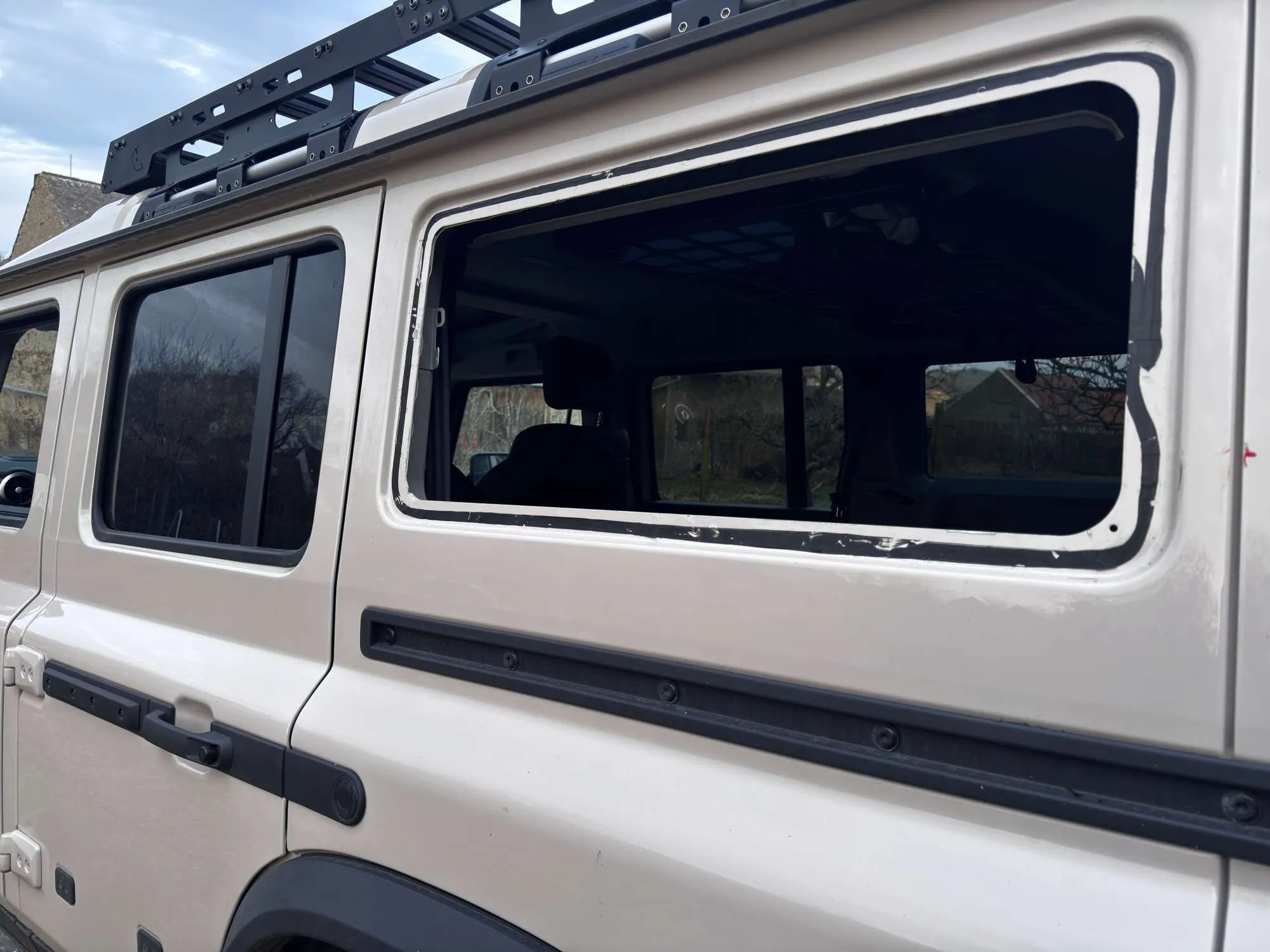

The dimensions of the gullwing window precisely match the original side glass of the INEOS Grenadier. No modifications to the bodywork are required, and the original glass can be refitted at any time.

Installation must be carried out using MS Screenbonder, a TÜV-certified polymer adhesive.
The bonding surface must be flat, clean and free of contaminants.
This adhesive is not included by default, but is always offered in your quote.

It is important that Explore Glazing products are assembled correctly and safely. Careless installation can lead to accidents and serious damage and/or injury to yourself or others. If you lack technical experience or are not familiar with our general installation guidelines, we recommend that you have the window installed by a professional.

Refer to the installation manual or visit our YouTube channel for step-by-step instructions.
